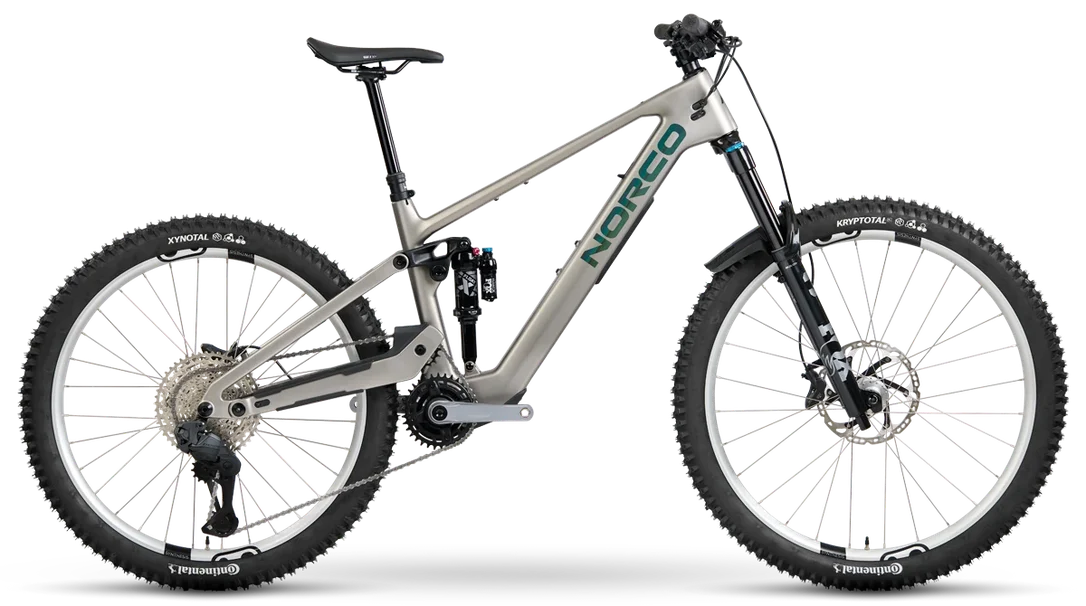

2025 Sight VLT CX C2
Start fast and finish strong on the new Sight VLT CX. Now with the new Bosch Performance Line CX motor, it’s almost 20% lighter than our previous generation, so you can commit harder and ride longer than ever before. The high pivot suspension layout with 160/150mm travel provides smooth, confident handling through rough terrain; this bike punches above its weight without losing playfulness.
New Bosch eMTB technology for a powerful lightweight package featuring VPSHP suspension.
The new Bosch Performance Line CX drive unit is lighter and quieter than previous models, without losing the exceptional torque and power the CX system is known for.
The VPSHP (Virtual Pivot Suspension | High Pivot) layout has a rearward axle path that moves out of the way of square-edged hits, maintaining momentum and smooth handling through the rough.
Specs:
| Frame | Carbon Frame, High Pivot Horst Suspension, 150mm Travel UDH, Eagle Transmission Compatible, Ride Aligned™ |
| Fork | RockShox Lyrik Select+,160mm Travel, 44mm Offset |
| Rear Shock | RockShox Super Deluxe Select+, 230x60mm TR |
| Rear Shifter | SRAM AXS POD Controller, Discrete Clamp |
| Rear Derailleur | SRAM Eagle AXS T-Type, 12sp |
| Crankset | Praxis HD Aluminum, 34T, 165mm |
| Bottom Bracket | Bosch BDU38 |
| Cassette | SRAM 1270 T-Type, 11-52T, 12sp |
| Chain | SRAM Eagle T-Type, 12spd |
| Front Brake | SRAM Maven Bronze, Metallic Pads |
| Front Brake Rotor | SRAM Centerline, 200mm, 1.8mm Thickness, 6 bolt |
| Rear Brake | SRAM Maven Bronze, Metallic Pads |
| Rear Brake Rotor | SRAM Centerline, 180mm, 1.8mm Thickness, 6 bolt |
| Brake Levers | SRAM Maven Bronze Stealth |
| Handlebar | Norco 6061 DB Alloy, 800mm, 25mm |
| Stem | Norco Alloy, 40mm Length, 35mm Clamp |
| Seatpost | TranzX YSI08FL RAD+ Travel Adjust Dropper 31.6mm, 125mm (S1) -150mm (S2) -170mm (S3) -200mm (S4, S5) |
| Headset | FSA No.55 Sealed Bearing, 1 1/8″ – 1.8″ Tapered, ( ZS44/28.6 | ZS56/40 ) |
| Saddle | Fizik Terra Aidon X5 |
| Grips | WTB Wavelength, 130mm Length |
| Seatpost Clamp | Norco Alloy Nutted Clamp, 34.9mm ID |
| Front Hub | Bear Pawls BMB-003,15×110 Boost, 6 Bolt, 32H |
| Rear Hub | DT Swiss 370, 12×148 Boost,XD, 32H, 6 Bolt |
| Rims | WTB KOM Team, 30mm, 32H, 29″-27.5 F/R |
| Front Tire | Continental Kryptotal-F, Trail, Endurance, 29″ x 2.4″, Foldable |
| Rear Tire | Continental Xynotal, Enduro, Soft, 27.5″ x 2.4″, Foldable |
| Spokes/Nipples | Sapim Sprint DB Spokes |
| Drive Unit | Bosch Performance Line CX |
| Battery | Bosch PowerTube 800 Wh |
| Switch | Bosch BRC 3300 Mini Remote 22.2mm |
| Power Button | Bosch BRC 3100 System Controller |
| Weight | 22.2 kg (49 lbs) |
| Weight Size | S3 |
| Feature 1 | Bosch Smart System Rim Magnet |
| Feature 2 | Bosch PowerMore 250 Range Extender (Not Included) |
