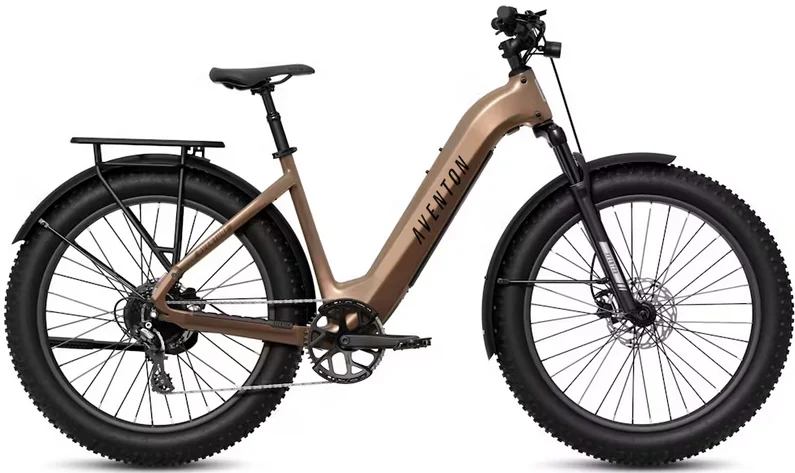

Aventon Aventure 3 Step Through

Description

The Aventon Aventure 3 is the ultimate Ebike for adventure seekers, combining rugged performance with cutting-edge technology. Featuring 4″ fat tires, a suspension fork, and an added suspension seatpost, the Aventure is built to conquer any terrain with ease. Now equipped with ACU technology that offers 4G^†/GPS^† capabilities and advanced anti-theft features, the Aventure 3 keeps you connected and your bike secure so the only thing you have to worry about is where your bike will take you next. Its powerful 750W motor, 65 miles of range, and Ride Tune customization ensures you can get where you want to go, with exactly as much power as you need to get there. No matter where you want to explore, the Aventure is ready to take on the challenge.

General Info

Model: Aventure 3 Step ThroughWeight: 77lbsTotal Weight Limit: 400 lbsRider Height: R: 4’11” – 5’7″ , L: 5’7″ – 6’1″ Ebike Class: Class 2 EbikeWater Resistance: IPX6Range: Up to 65 MilesBattery Safety Certifications: Certified to UL 2271Safety Certifications: UL Safety Certified
UL 2849Ideal Use: All-TerrainPedal Assist: 3 Levels (with Ride Tune Customization)Frame: 6061 Aluminum, Gravity Cast Front TriangleFork: Aventon/Zoom Suspension Fork, 80mm travel, with lockout
Frame Style: Step-Through

Ebike System

Motor: 36V, 750W Hub DriveMotor Torque: 80NmDisplay: Aventon BC280Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cellsBattery Weight: 8.7lbsController: 36V, 24AThrottle: Aventon LH Handlebar MountedSensors: Double Sided Bottom Bracket Torque SensorCharger: 36V Output: 42V/ 4ACharging time from 0% to 100%: 5 hoursLights: Front and rear lights integratedSpeed: Class 2

Components

Front Brake: Tektro HD-E3520 hydraulic disc brakes w/ E1 quick disconnect wireRear Brake: Tektro HD-E3520 hydraulic disc brakes w/ E1 quick disconnect wireFront Brake Rotor: Tektro 180mm 6 boltRear Brake Rotor: Tektro 180mm 6 boltRear Derailleur: Shimano Altus 8-SpeedShifter: Shimano 8-Speed TriggerChain: 7/8 Speed 118LCassette: 12-32T / 8 Speed Shimano CS HG200-8Chainring: 48T
Bottom Bracket: 100×177 Square Taper, Double Sided Torque sensor bottom bracketPedals: 9/16″ Alloy PlatformSaddle: Aventon SaddleSeatpost: 30.9mm Aventon Suspension Seatpost with 50mm travelSeatpost Clamp: 34.9mmHandlebars: Aluminum 31.8mm, 680mmGrips: Aventon Lock on grips

Technical Overview

The Aventure 3 ships as a Class II ebike, with pedal assist and throttle. The Aventure 3 will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I ebikes or throttles are prohibited. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components. *Max range is determined using PAS 1 on flat terrain with a rider weight of 160 lb.*
