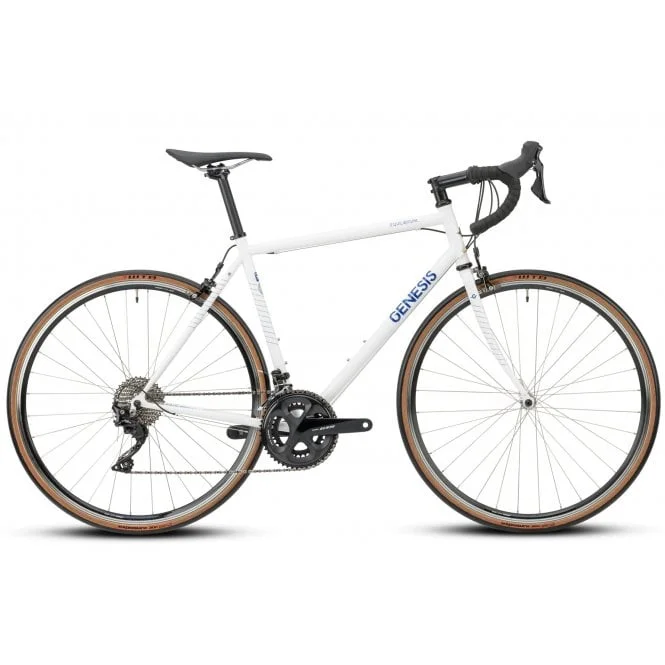

Equilibrium Road Bike

Description

Detailed Specification

Frame & Fork

• Frame: Reynolds 725 Heat-Treated Chromoly
• Fork: Genesis Steel
• Headset: PT-1767D EC34 Upper / EC34 Lower
• Hanger: Integrated

Components

• Handlebars: Genesis Alloy – XS: 400mm, S/M: 420mm, L/XL: 440mm
• Stem: Genesis Alloy -7° – 90mm (XS), 100mm (S/M), 110mm (L/XL)
• Grips/Tape: Genesis Vexgel
• Saddle: Genesis Road
• Seatpost: Genesis Alloy 27.2 x 350mm
• Pedals: Not included

Drivetrain

• Shifters: Shimano 105 ST-R7000 11-speed
• Rear Derailleur: Shimano 105 RD-R7000-GS
• Front Derailleur: Shimano 105 FD-R7000-L
• Chainset: Shimano 105 FC-R7000 50/34T – XS: 170mm, S/M: 172.5mm, L/XL: 175mm
• Bottom Bracket: Shimano SM-BBR60
• Chain: KMC X11
• Cassette: Shimano CS-HG700-11 11-34T

Brakes

• Brakes: Promax RC-477
• Brake Levers: Shimano 105 ST-R7000 11-speed
• Rotors: N/A – Long Arm Caliper Mount

Wheels & Tyres

• Rims: Promax RC-477
• Hubs: Shimano 105 ST-R7000
• Spokes: Steel 14g
• Tyres: WTB Exposure 700 x 30c

Technical Details

• Warranty: Lifetime for Frame and Fork
• Weight: 10.04kg
• Frame Weight Limit: No weight limit
• Fork Steerer Size: 1 1/8”
• Wheel Size Options: 700c
• Max Tyre Clearance: 700c x 30c
• Hub Size/Spacing: Front 100mm / Rear 135mm
• Brake Mount Type: Long Arm Caliper
• Front Mech Compatibility: Band On 28.6mm
• Max Chainring Size: 52/39
• Seat Tube / Clamp Size: 27.2mm / 29.8mm
• Colour: The Whitehouse Family
• Colour Code: White

Mounts

• Mudguard Mounts: Yes
• Rack Mounts: Yes
• Bottle Cage Mounts: Yes
• Additional Mounts: N/A
