Vault Pedal Service Kit – Pair

Description

DMR Vault Pedal Service Kit includes:

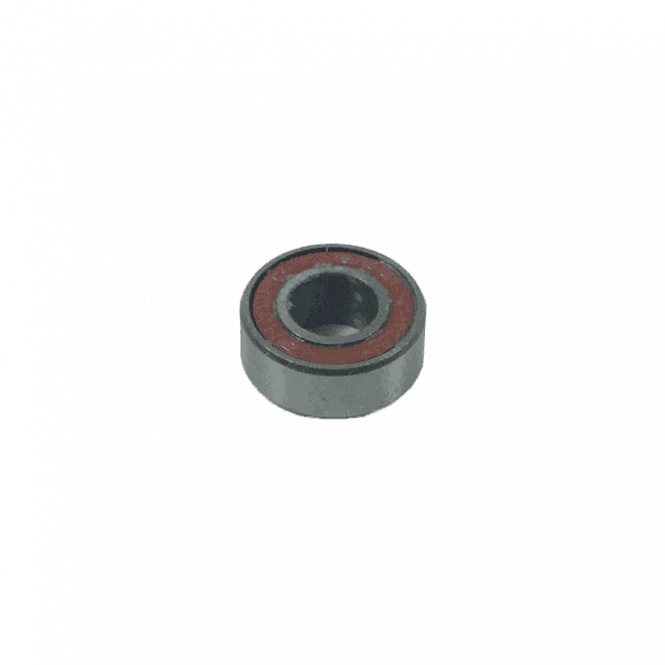

• 2x Sealed bearing number: 686ZZ – 6mm Ø ID (Internal Diameter) 13mm Ø OD (Over All Diameter) 5mm Width
• 2x Plain bearing (bushing) 12mm Ø ID (Internal Diameter) 14mm Ø OD (Over All Diameter) 12mm Width

Nuts:

• 1x M5x0.75 5 deep right hand thread (left hand pedal) (to be fitted with a 8mm socket)
• 1x M5x0.75 5 deep left hand thread (right hand pedal) (to be fitted with a 8mm socket)

• 2x End cap: M14x1x11
• 2x Washer: 6mm Ø ID (Internal Diameter) 9mm Ø OD (Over All Diameter) 1mm Width
• 2x Internal Rubber Seals
